Omega-8 Multizone – UHF 470-616 MHz

Omega-8 Multizone – UHF 470-616 MHz


In stock

*1 week lead-time*

4-Zone receive antenna distribution with bias & attenuation control.


  • 4 Diversity Antenna Inputs (8 Total)
  • 8 Diversity Outputs (16 Total)
  • RF Bandpass Filtering
  • Adjustable attenuation from 0 to -40 dB for each antenna input
  • Selectable bias power for each antenna input
  • Dual redundant power supplies
  • Internal Power Supply
  • Rugged 1RU Chassis w/ Reinforced Rack Ears

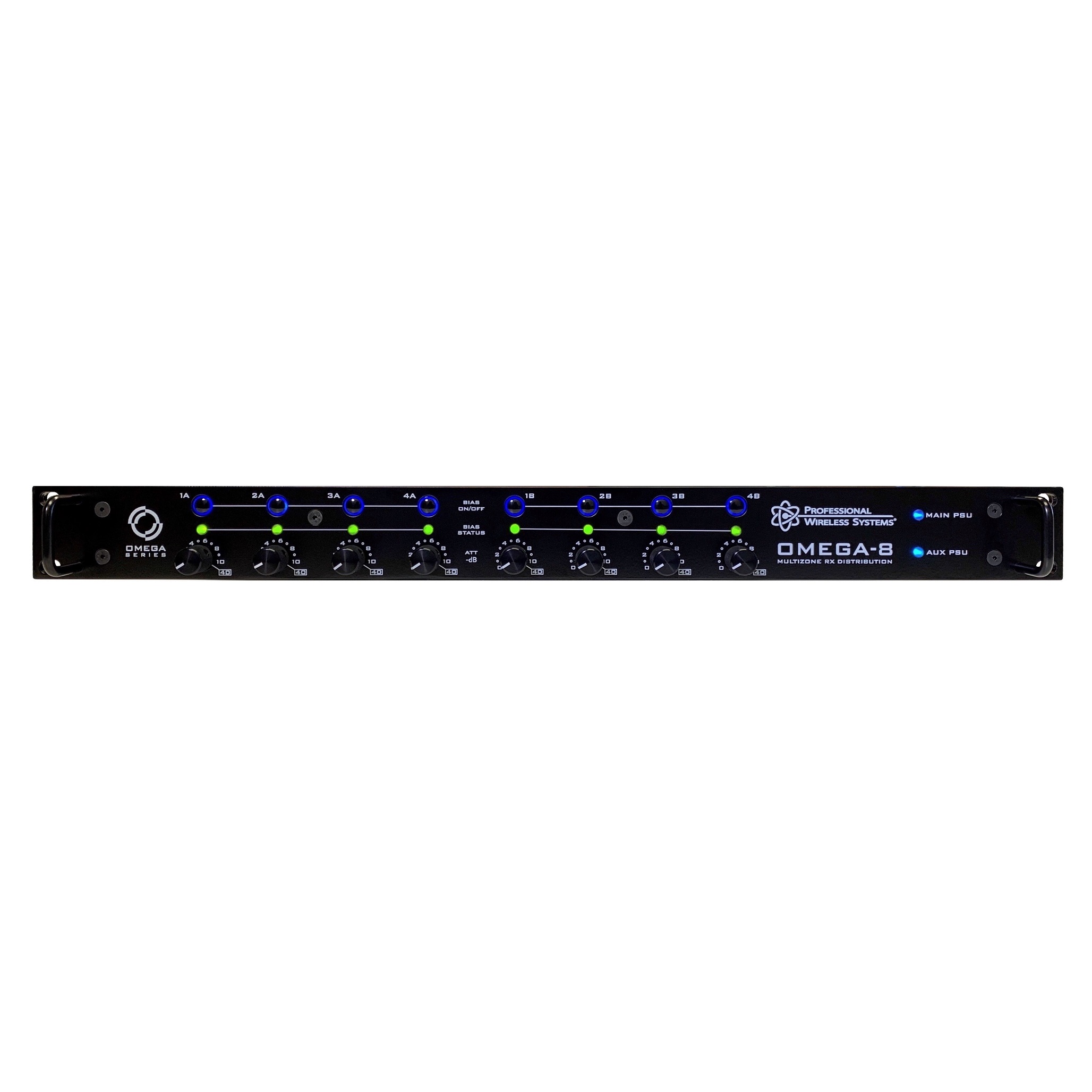

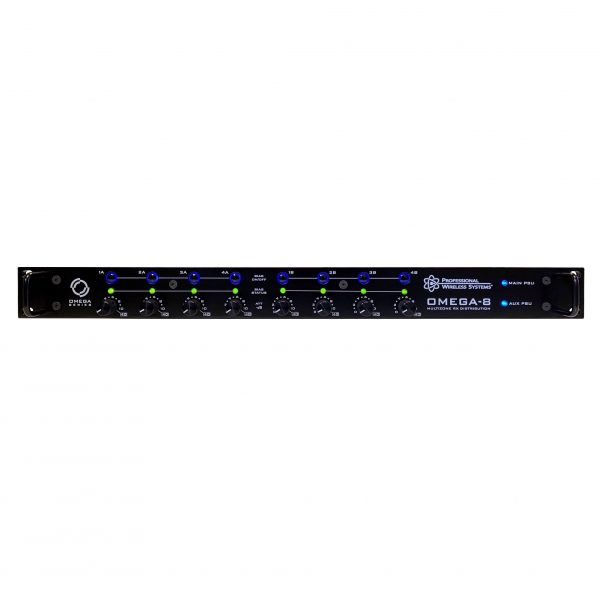

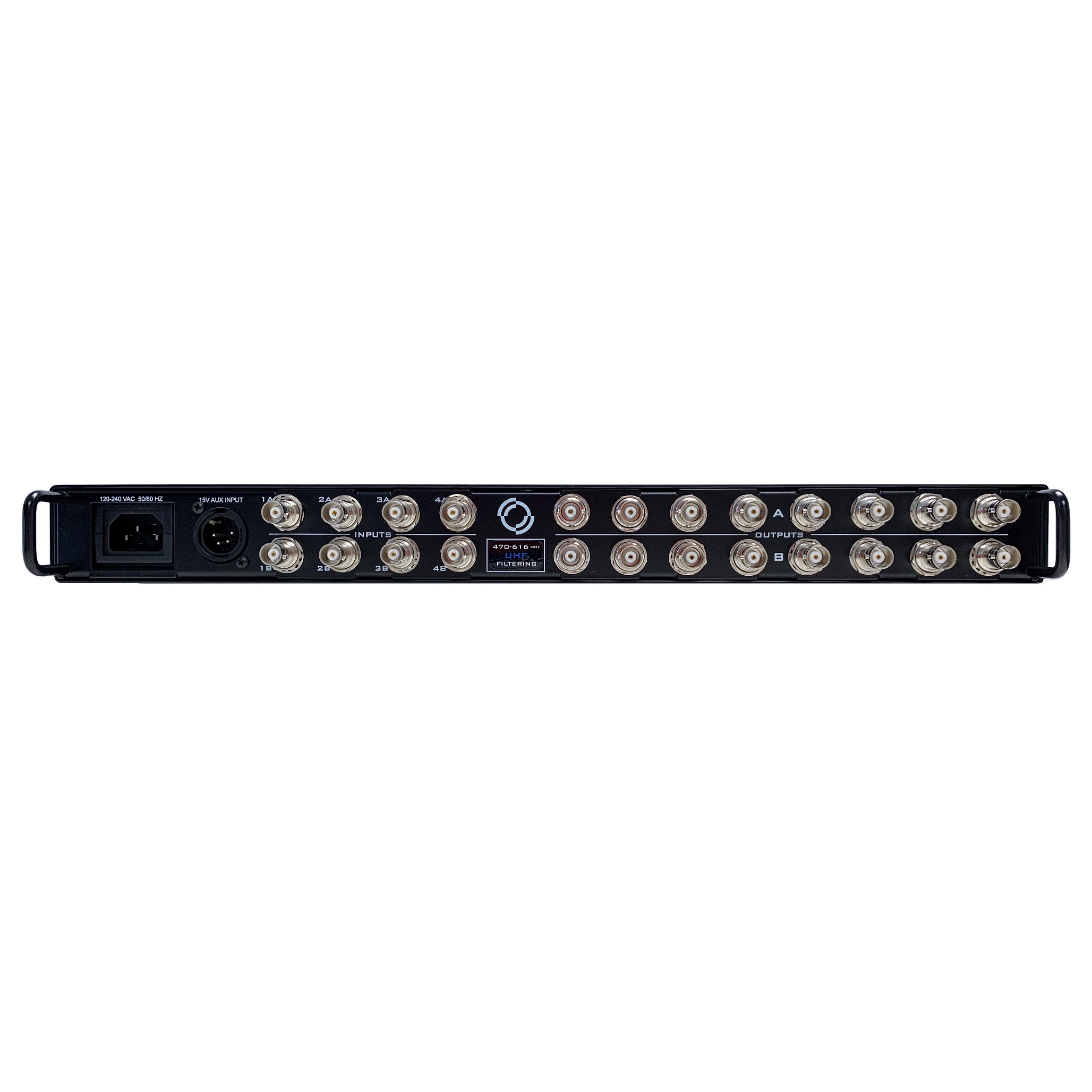

The Omega-8 is the heart of your distributed antenna system. Combine 4 sets of diversity antennas. Providing signal to up to eight receivers, with RF filtering at 470-616 MHz, the Omega-8 is a compact and powerful solution. Housed in a rugged 1RU all-metal chassis with reinforced rack ears.

Designed + Built + Tested in Orlando, FL

Omega-8 Spec Sheet
