PRZM Set (T1 & R1) – UHF 470-616 MHz

PRZM Set (T1 & R1) – UHF 470-616 MHz

$4,389.00

Out of stock

The PRZM RFoF system enables RF signals to be carried long distances over fiber optic cable.

About

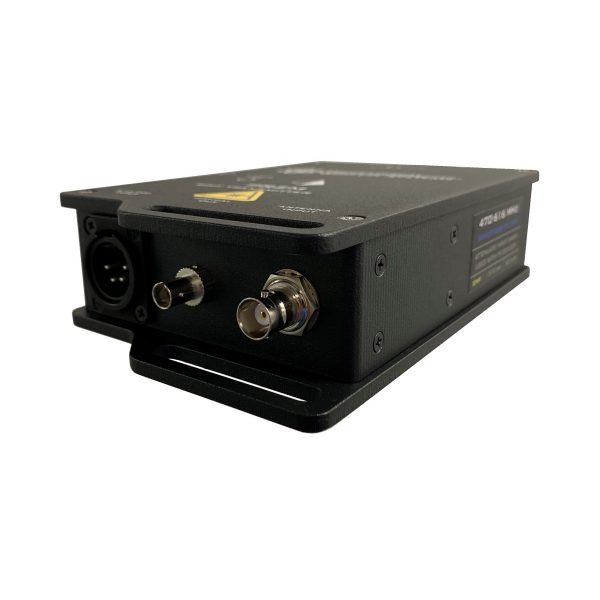

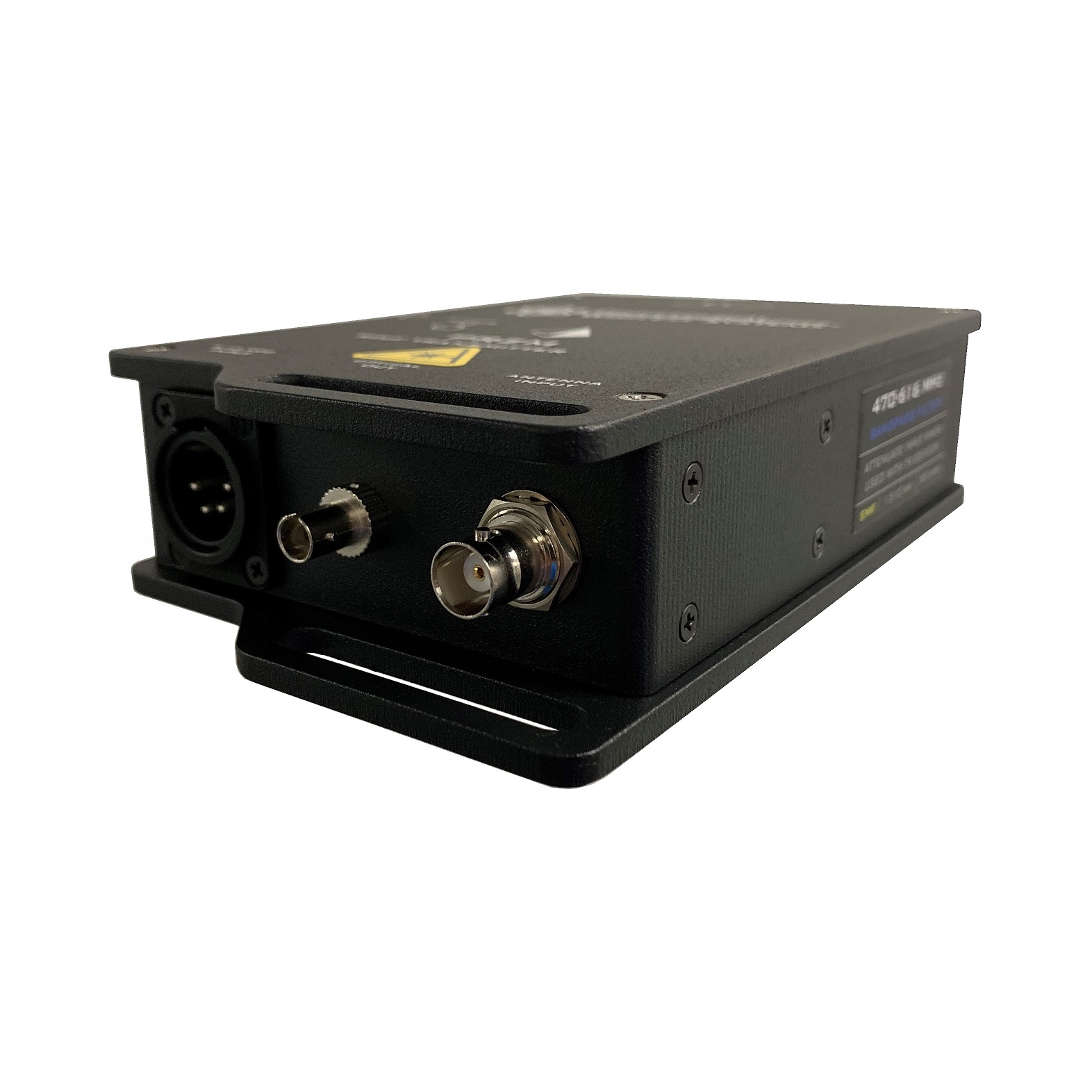

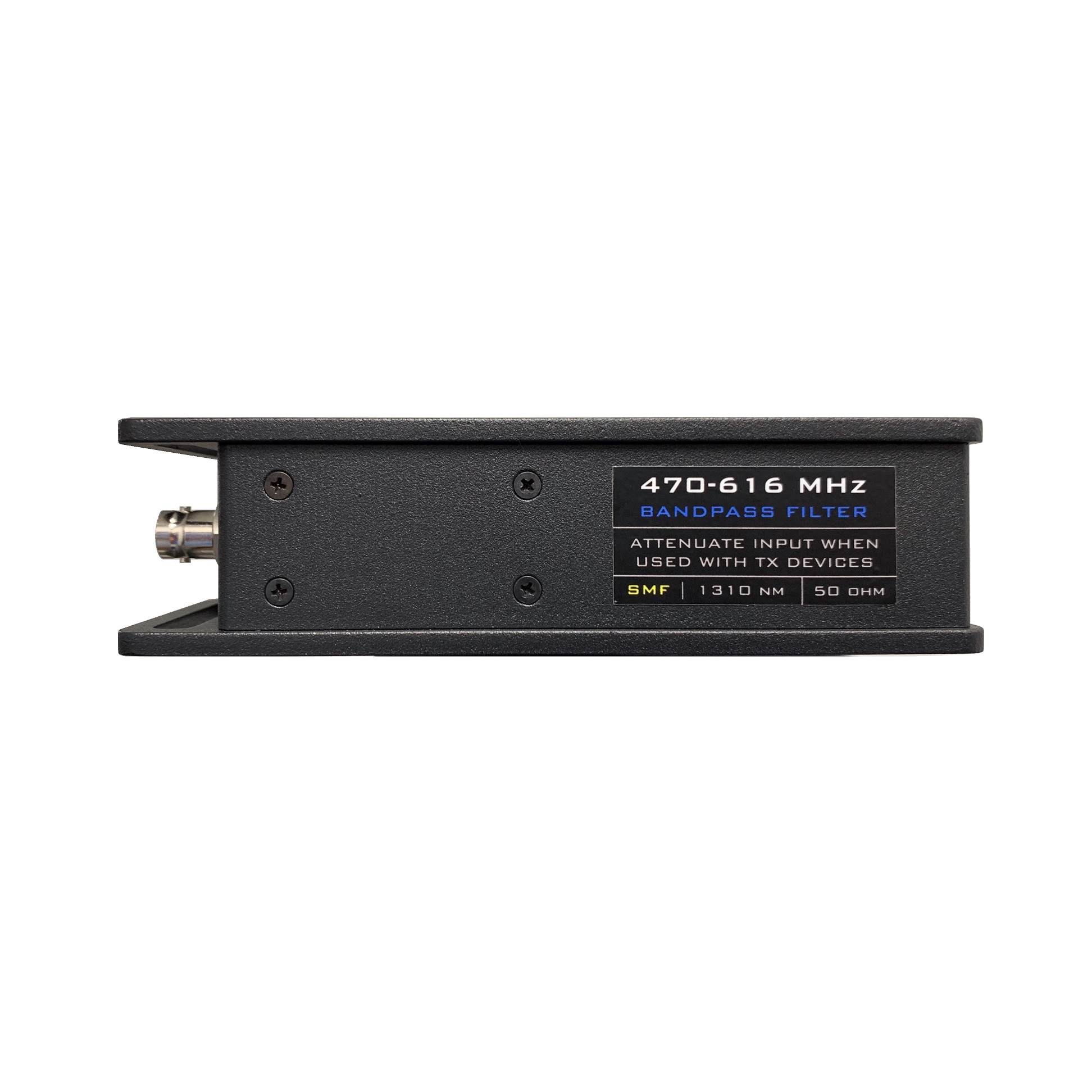

  • RF Filtered Input 470-616 MHz
  • ST Singlemode Fiber Connection
  • BNC RF Connection
  • XLR4 DC Connection

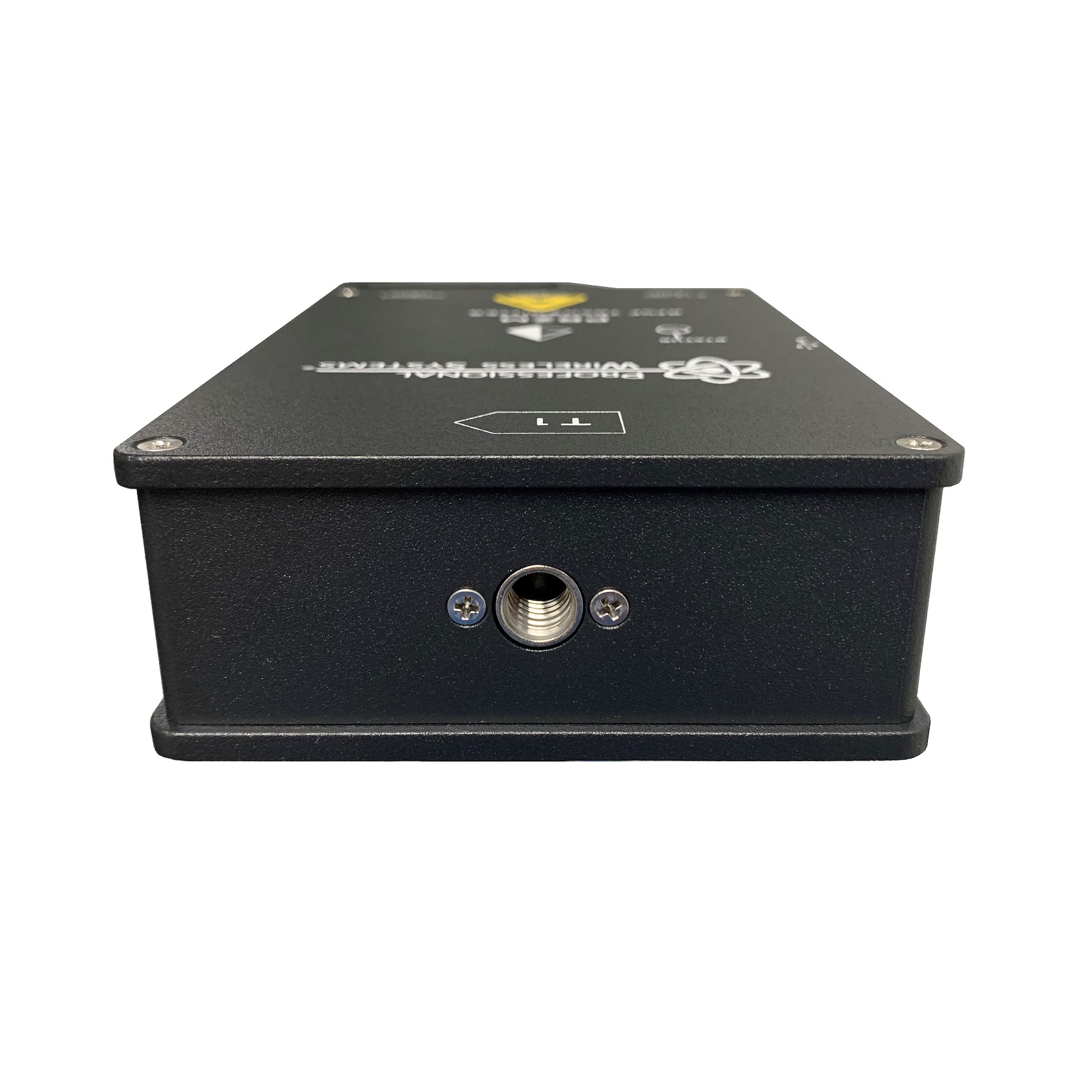

  • 3/8″ Threaded Mounting Point
  • Software Controlled

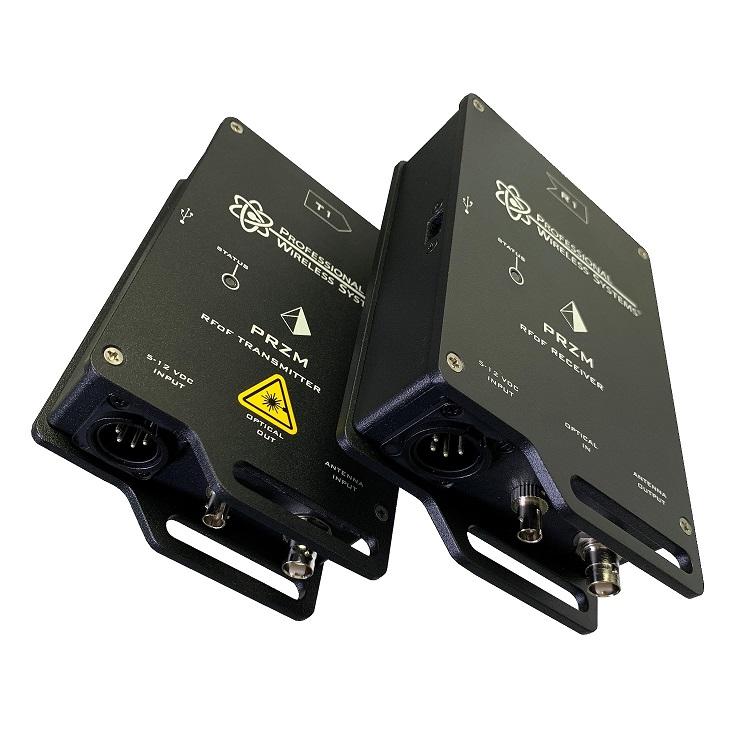

The PRZM RFoF system enables RF signals to be carried long distances over fiber optic cable. The T1 unit converts RF to optical signal and the R1 unit receives and converts that signal back to RF. The two units are connected with single mode fiber cable.

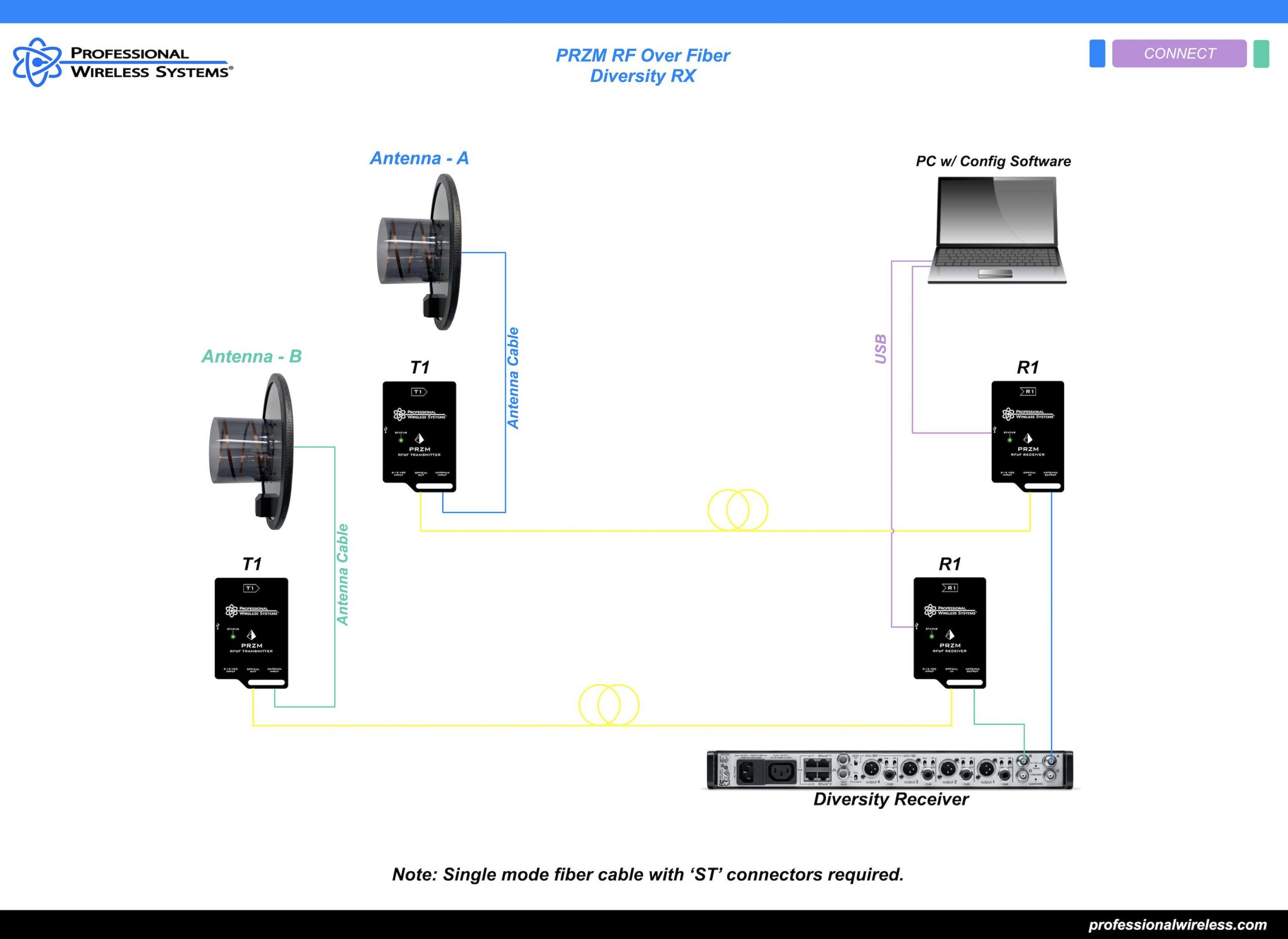

The PRZM system is typically used for connection between receive antennas and a wireless microphone receiver or RF distribution amplifier (see diagram). The system can also be used in reverse for in-ear monitor or IFB transmission.

The units are able to be programmed and monitored through the included configuration software, enabling adjustment of attenuation level, LNA, link test, and laser on/off. The software also let’s the user monitor link status, optical power, and RF level.

Included in the PRZM T1/R1 Set:

1x T1 Transmitter
1x R1 Receiver
2x power adapters
2x USB micro cables
1x 3′ ST-ST fiber cable
1x USB flash drive w/ configuration software

PRZM Spec Sheet

PRZM User Guide
