PWS In-Line Bandpass Filter – VHF 169-217 MHz

PWS In-Line Bandpass Filter – VHF 169-217 MHz


In stock

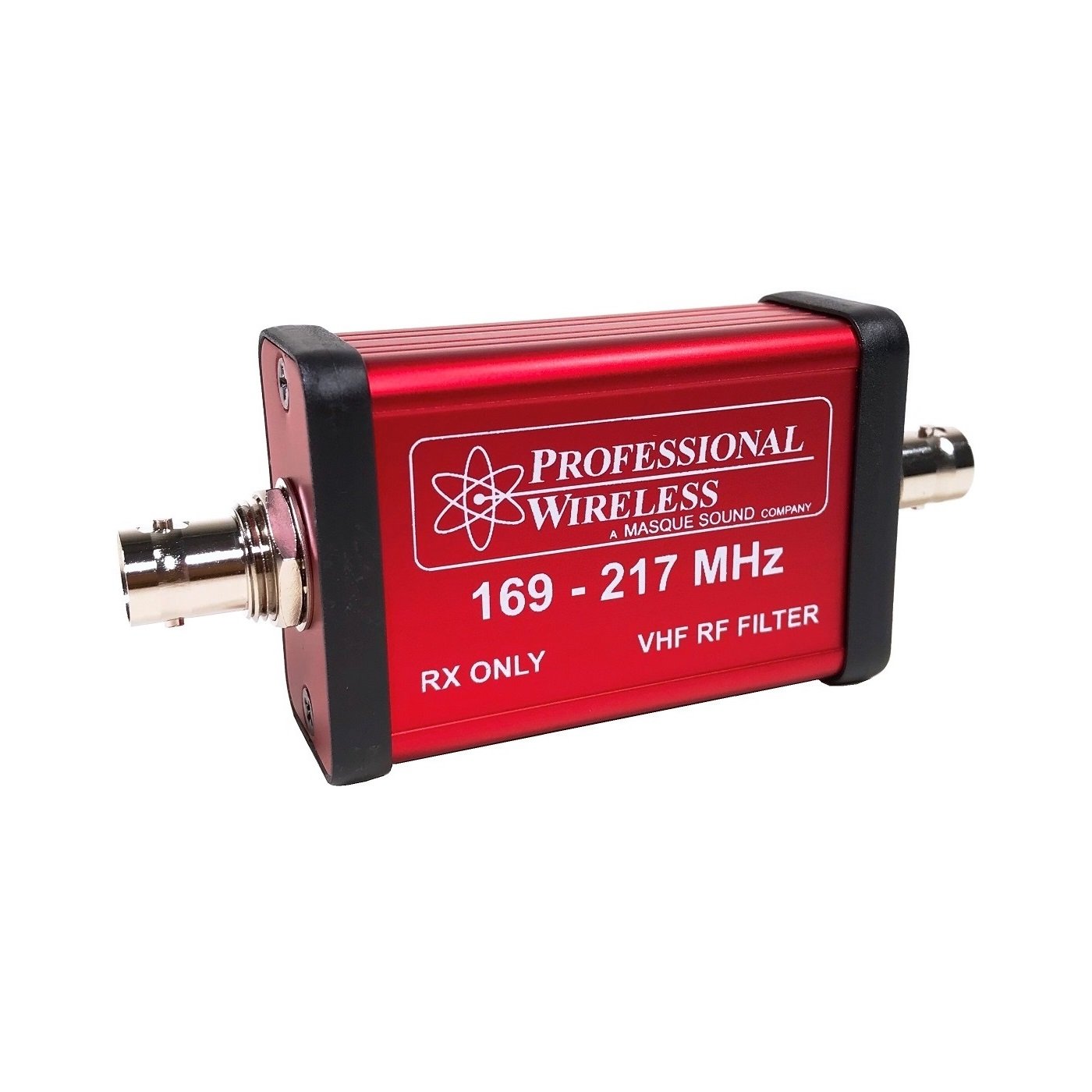

In-Line VHF Filter 169-217 MHz


  • Mode of Operation: Receive Line Filter
  • Frequency Range: 169-217 MHz
  • Insertion Loss: -1 dB avg.
  • DC Passing
  • Connectors: (2) BNC Female
  • Product Dimensions: (1.75 x 3.75 x 0.9) inches

The PWS In-Line VHF Filter is designed to attenuate extraneous RF energy outside 169-217 MHz.

An In-line filter can help attenuate unwanted RF energy from entering your receiver by blocking the frequencies not within the tuned range. These filters are tuned to ranges commonly used in wireless audio systems. Other benefits include increased RF range due to lowering the noise floor the receiver “sees” and better audio quality of your wireless system.

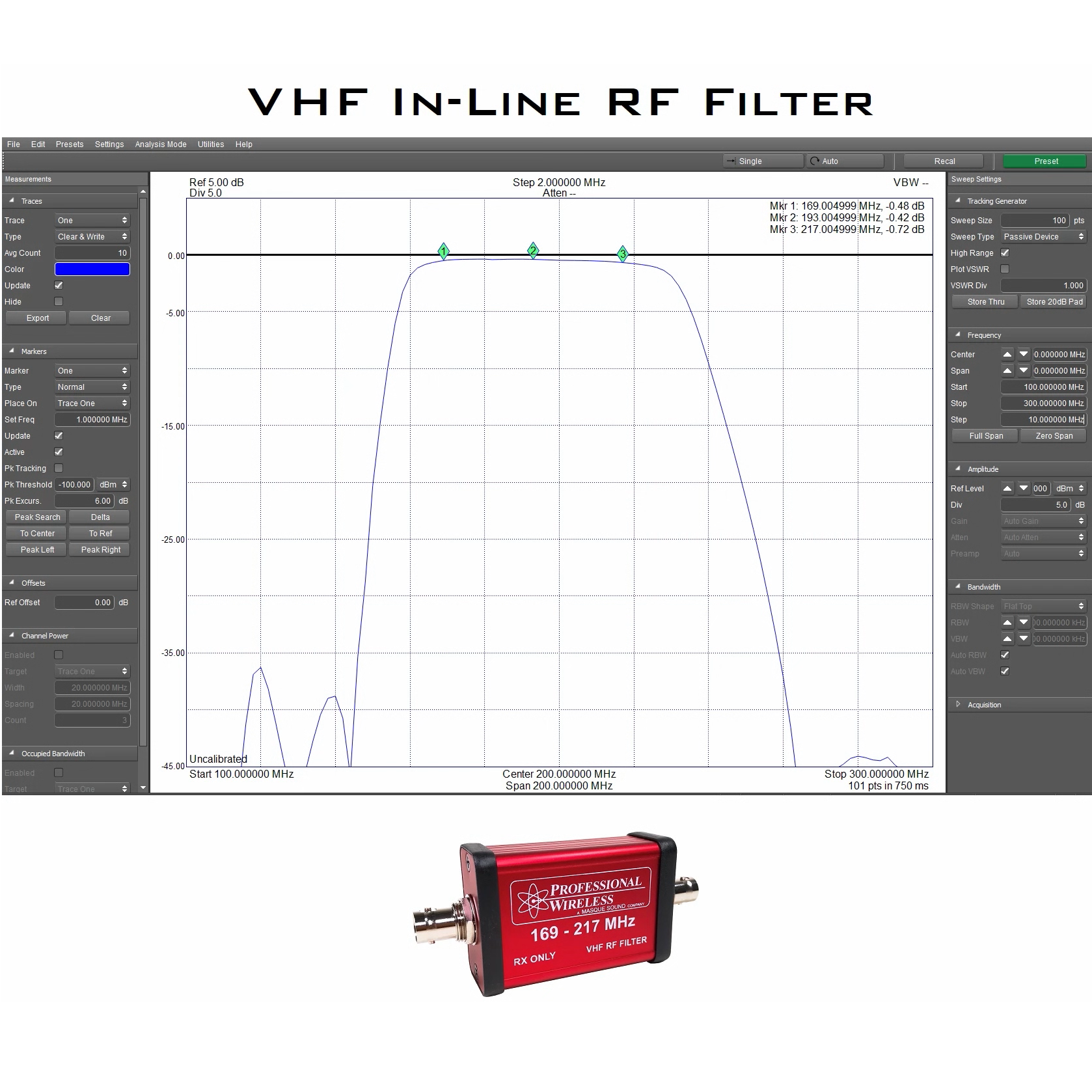

VHF In-Line RF Filter Spec Sheet
