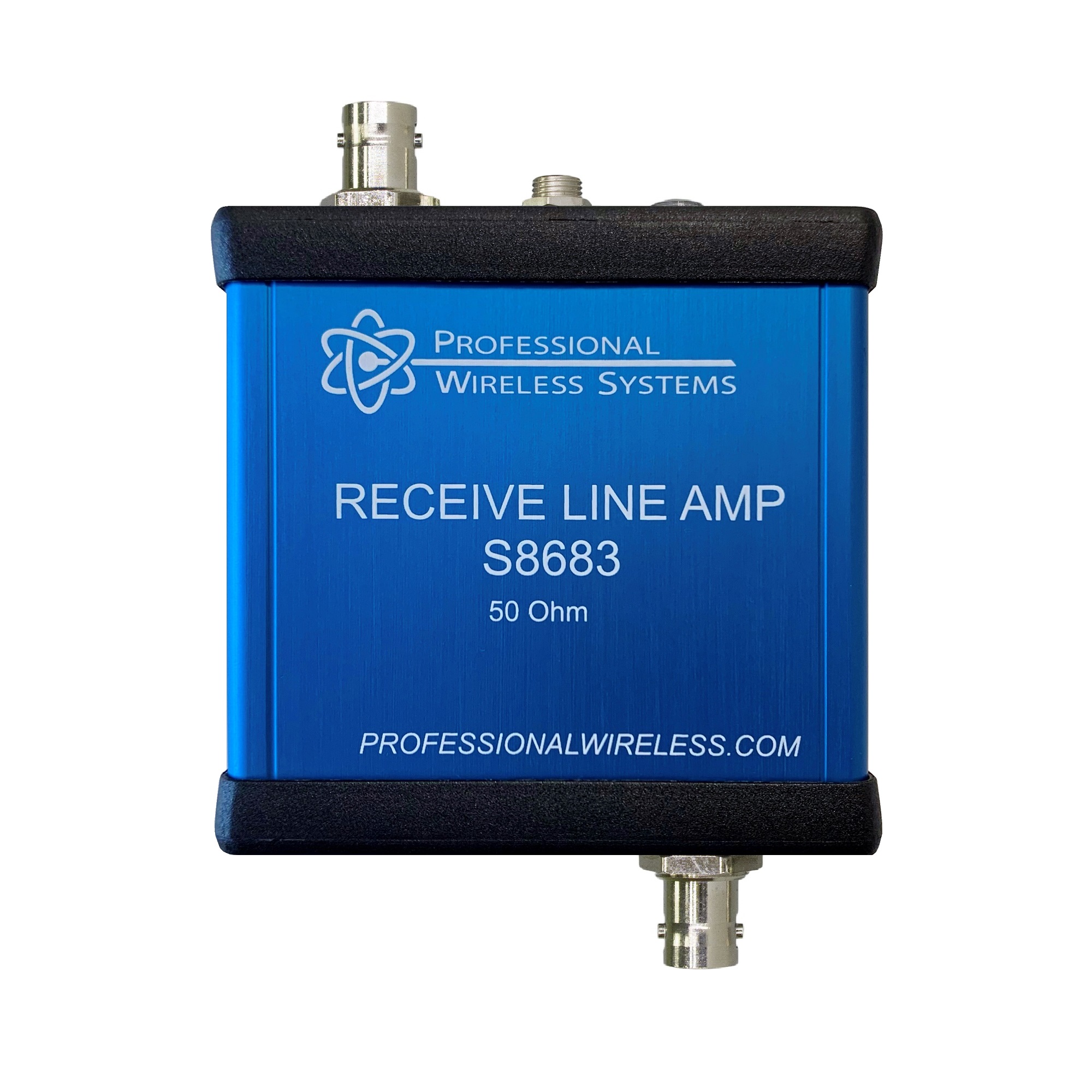

PWS Receive Line Amp, +5/+15 dB, w/PSU

PWS Receive Line Amp, +5/+15 dB, w/PSU


In stock

RF Receive Line Amp


  • Frequency Range: 470-698 MHz
  • Gain: Switchable between +5 & +15 dB
  • Input Power (no damage): +13 dBm
  • DC Voltage: 4.0 min to 15.0 max VDC
  • Power Supply (included): 12VDC, w/locking plug
  • Product Dimensions: (4.0 x 3.2 x 1.2)inches

The PWS Receive Line Amp is used to compensate for signal loss over long cable runs. It has a Hi/Lo feature for gain adjustment and includes a 12V locking power supply (can also be powered with bias power from a receiver, Omega Series distro, or Dual Bias-T.

Though it is not required, use a UHF In-Line Filter before the amplifier for best performance.

Receive Line Amp Spec Sheet
