Tour Series (TS) Helical Antenna

Tour Series (TS) Helical Antenna


In stock

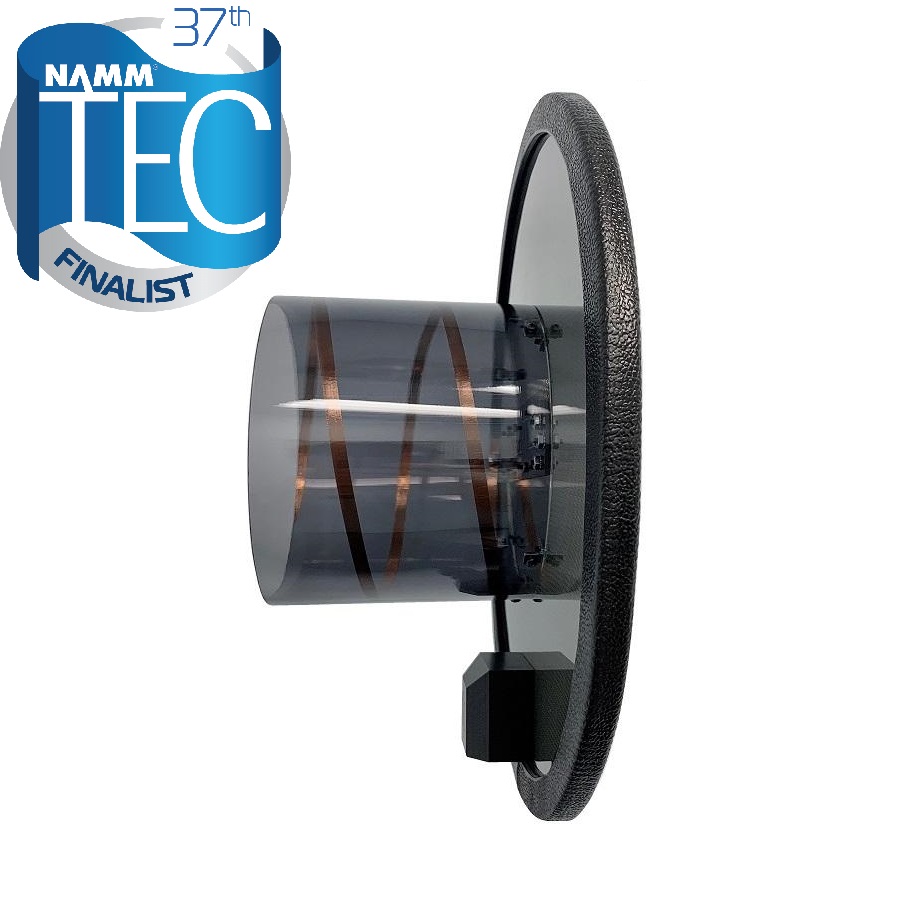

Low-profile circular polarized Helical Antenna.


  • Frequency Range: 460-900 MHz
  • Compatible with all UHF wireless systems
  • Circular Polarization
  • Impedance: 50 ohms
  • Beamwidth: 72°
  • RF Connector: BNC (F)
  • Use for TX or RX
  • Mounting threads: 3/8″-16 & 5/8″-27
  • Product Dimensions: (13.6 x 13.6 x 5.5) inches

2022 NAMM TEC Awards Finalist!

The TS Helical was designed to have a lower profile for easy storage, ideal for touring productions or other applications that require a compact size. Smoked transparent materials provide a stealth and non-obstructive appearance.

The PWS TS Helical Antenna offers unparalleled drop-out free RF performance for IEM, wireless mics and intercoms. Helical Antennas provide greater bandwidth, longer range, greater reliability and more flexibility than other antennas. Unlike traditional whip and or fin antennas which transmit and receive signals in a single polarization, the circular motion of the RF field emitted by a helical antenna distributes the signal through all possible polarization, greatly reducing the risk of drop-outs. The high gain ensures the strongest possible signal.

TS Helical Antenna Spec Sheet
